Системы машинного зрения SIMATIC Machine Vision

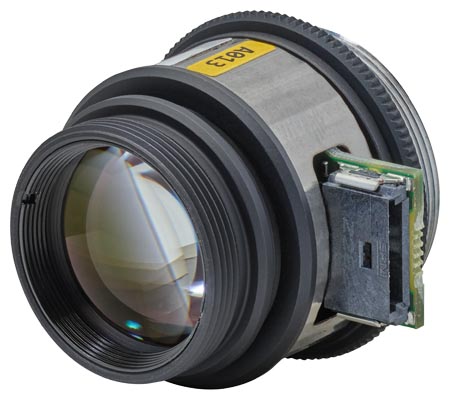

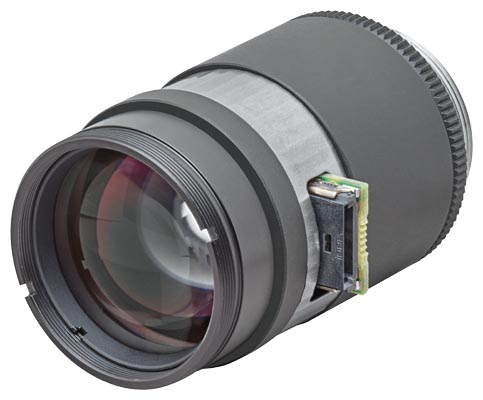

E-focus lens 25 mm Only for MV500 devices (MLFB: 6GF3540-0CD10, -0GE10, 6GF3550-0CD10, -0GE10; 6GF3560-0LE10, -HE10; EDMUND lens with liquid lens focal length 25 mm; focus electrically adjustable; fixed aperture; scope of delivery: lens and cable .

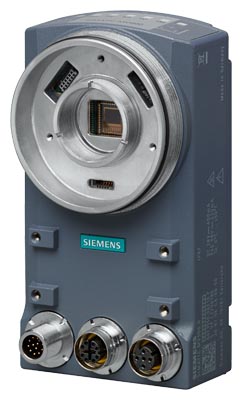

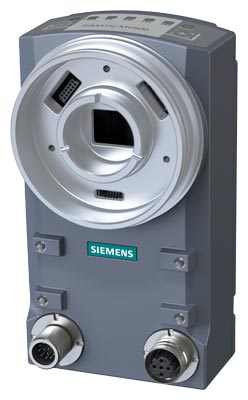

SIMATIC MV540 H optical reader Resolution: 1280 x 1024 pixels; Function: 1D/2D code reading; Image field and distance: variable (depends on lens); PoE; IP67 with 6GF3540-8ACxx; Delivery: Reader and SD card adapter.

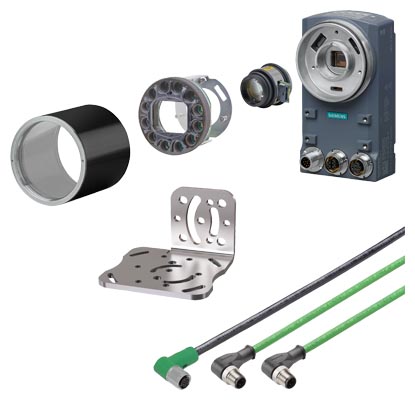

Starter package MV550 ADVANCED included in the package: SIMATIC MV550 H code reader for Reading of 1D/2D codes Resolution 1280 x 1024 pixels; E-focus lens 25 mm; Built-in ring lamp red multi; Ethernet cable 2x2 M12/RJ45 10 m Ethernet cable 4x2 M12/M12 2 m; Power-IO-data cable 10 m; Lens protection glass modular IP67; mounting plate; cont. MLFB: 6GF3550-0GE10, 6GF3440-8CA; 6GF35408EA030LL0; 6GF3540-8AC11, -8DA13; 6GF3500-8BA21; 6XV1871-5TN10; 6XV1878-5GH20; 6GK1901-1BB10-2AA0; -1BB11-..; Max. 1 package per customer

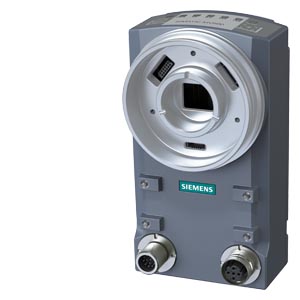

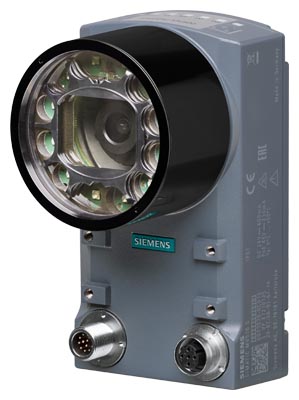

SIMATIC MV530 H optical reader Resolution: 1280 x 1024 pixels; Function: 1D/2D code reading; operating range [mm]: 30…250, depending on dot size; image field[mm]: 40x30…320x255; PoE; IP67; delivery: complete reader incl. built-in ring lamp green, pole filter, Optic 5.6 mm (fix- focus, fixed cover) and protective barrel;

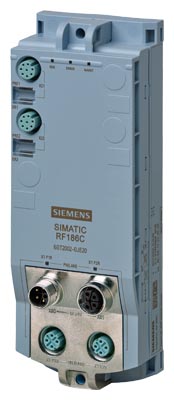

RFID коммуникационный модуль RF186C для Profinet, Ethernet, могут быть подключены 2 считывателя.

SIMATIC MV560 U optical reader Resolution: 1920 x 1200 pixels; Maximum processing and communication speed; Function: 1D/2D code reading; Image field and distance: variable (lens); PoE; IP67 with 6GF3540-8ACxx; Delivery: reader; B enable => VSF!

SIMATIC MV530 S optical reader resolution: 800 x 600 pixels; Function: 1D/2D code reading; operating range [mm]: 30…250, depending on dot size; image field[mm]: 40x30…185x140; PoE; IP67; delivery: complete reader incl. built-in ring lamp green, pole filter, Optic 5.6 mm (fix- focus, fixed cover) and protective barrel;

SIMATIC MV550 S optical reader resolution: 800x600 px; 2x Ethernet:100 MB(POE),GigE !No switch => data separation!; Function: 1D/2D code reading; Image field and distance: variable (depends on lens); PoE; IP67 with 6GF3540-8ADxx; Delivery: Reader and SD card adapter (without card);

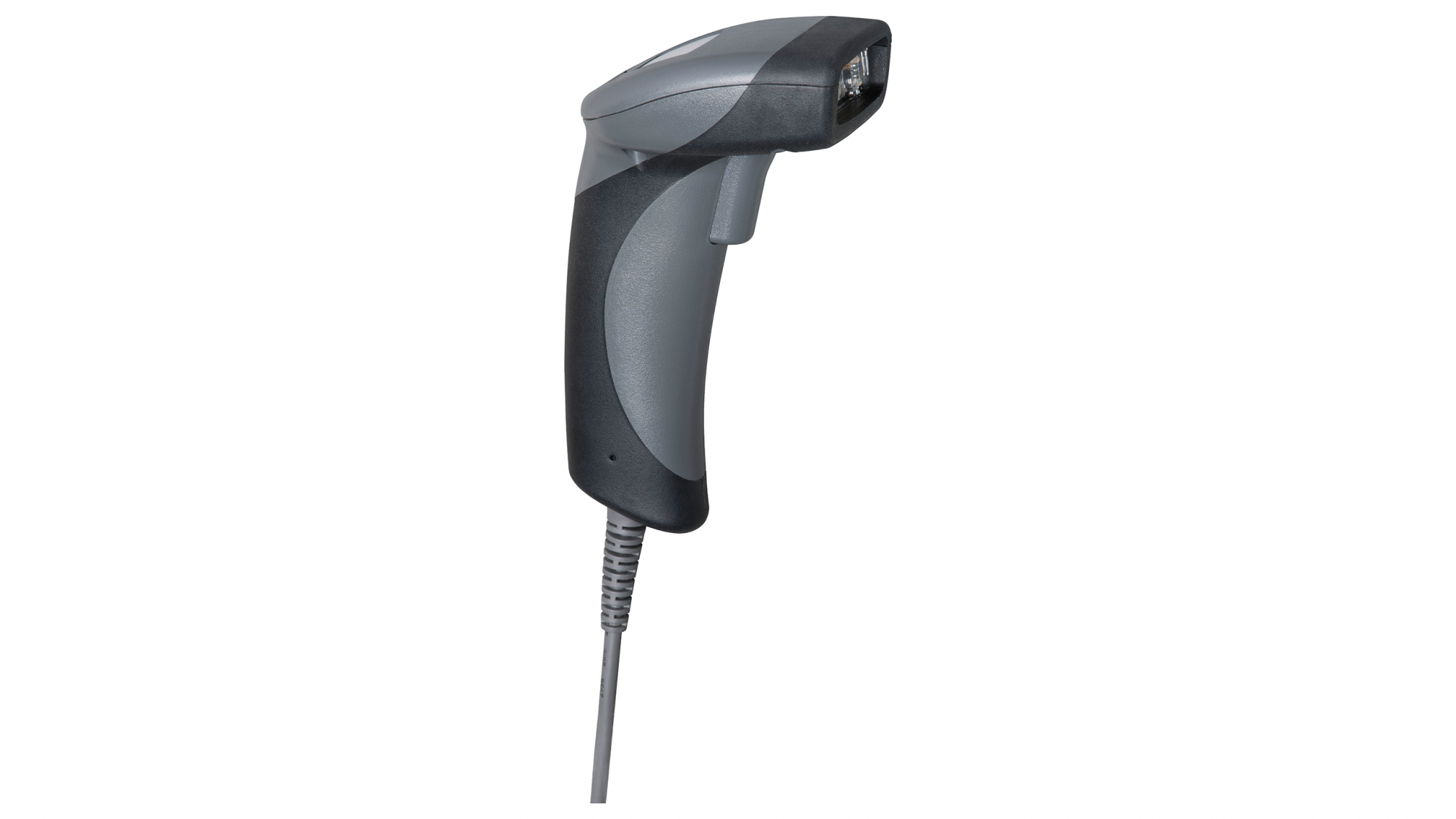

Ручной считыватель кодов SIMATIC MV320 с   для считывания 1D и 2D штрих и баркодов с высоким и средним контрастом  в диапазоне от 20 до  375мм.   SIMATIC MV320 с имеет, инфрмационный LCD дисплей, эргономичную рукоятку, кабель USB   6' (1.8M).

SIMATIC MV540 S optical reader resolution: 800 x 600 pixels; Function: 1D/2D code reading; Image field and distance: variable (depends on lens); PoE; IP67 with 6GF3540-8ADxx; Delivery: Reader and SD card adapter;

SIMATIC MV560 X optical reader Resolution: 2592 x 2048 pixels; Maximum processing and communication speed; Function: 1D/2D code reading; Image field and distance: variable (lens); PoE; IP67 with 6GF3540-8ACxx; delivery: reader,

SIMATIC MV550 H optical reader resolution: 1280x1024 pixels; PN and GigE; 2x Ethernet:100 MB(POE),GigE !no switch=>data separation!; function: 1D/2D code reading; Image field and distance: variable (depends on lens); PoE; IP67 with 6GF3540-8ACxx; delivery: reader and SD card adapter (without card);

Pat-Genius; OSD version object detection license for MV500 and MV400 code reading devices; Single License, Single License extends devices above with functionality for object detection and inspection; delivery by OSD; can be uploaded onto device ALM can be uploaded onto device; requirement: FW MV500 >V2.0 and MV440: FW >V6.0

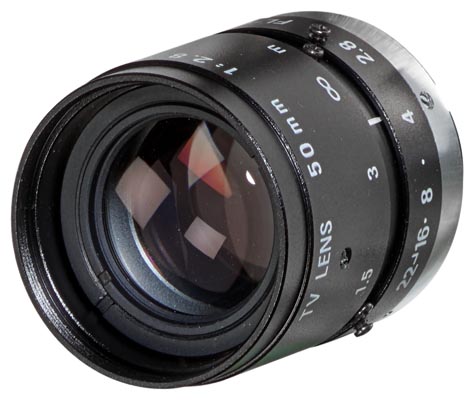

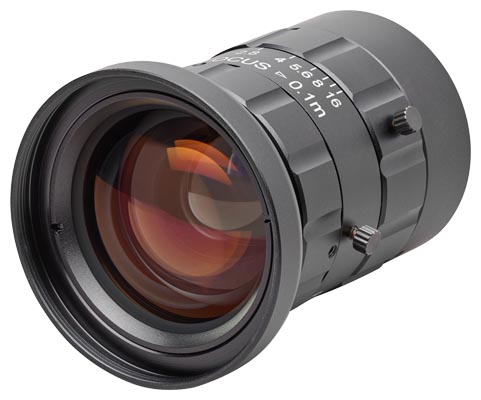

МИНИ ЛИНЗЫ 25ММ, 1:1.6 PENTAX C3516-M(KP) С ФИКСИРОВАННЫМ ФОКАЛЬНЫМ РАССТОЯНИЕМ, APERTURE AND FOCUS ADJUSTABLE D=29.5 MM, L=41.4 MM

E-focus lens 50 mm Only for MV500 devices MLFB: 6GF3540-0CD10, -0GE10, 6GF3550-0CD10, -0GE10; 6GF3560-0LE10, -HE10; EDMUND lens with liquid lens focal length 50 mm; focus electrically adjustable; fixed aperture; requires protective barrel long 6GF3540-8AC*2; scope of delivery: lens, cable and ring lamp long.

МИНИ ЛИНЗЫ 16ММ, 1:1.4 PENTAX C1614-M(KP  С ФИКСИРОВАННЫМ ФОКАЛЬНЫМ РАССТОЯНИЕМ, APERTURE AND FOCUS ADJUSTABLE D=29.5 MM, L=37.2 MM

Мини-объектив 6мм, 1:1,4 PENTAX C60636KP С фиксированным фокусным расстоянием, диафрагма и фокус регулируемая D = 32 мм, L = 37,5 MM

MV560 fixed-focus lens 16 mm only for MV560 devices MLFB: 6GF3560-0LE10; focal length 16 mm; adjustable aperture; scope of delivery: lens a. 15 mm protective barrel extender important: no built-in ring lamp can be used.

RFID коммуникационный модуль RF188C для Profinet, Ethernet, могут быть подключены 4 считывателя.

PAT-GENIUS, лицензия для распознавания физических свойств объектов для кодосчитывающий систем MV440, лицензия поставляется на USB носителе, так же может быть загружена на устройстве VIA ALM, Обязательное требование: FW> V6.0
